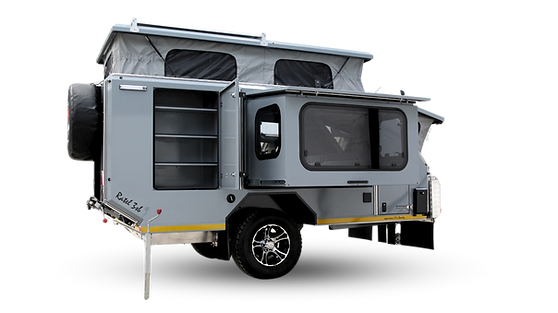

RATEL 3SB

Effortlessly extend the slide-out bed to reveal a spacious and plush sleeping area, allowing you to unwind in ultimate comfort. And when it's time to dine , the queen bed seamlessly transforms into a cozy dinette, providing versatility.Step into comfort with our interior shower, offering the convenience of a refreshing rinse after a day of exploration.

RATEL 3 SB (3).png

SPECS

Dry Weight - as per standard included features 1250 kg

Total Length (Spare wheel incl) 5420 mm

Total Height to roof top 2150 mm

Total Height to top of Bush Wing (depending on tyre size) 2250 mm

Head room inside 1980 mm

Total Width (excl Bush Wing & Shower Wing)1980 mm

Ground Clearance (Axle) 350 mm

Departure angle 22°

Solid beam axle with leaf springs and shock absorbers2500 kg

GVM1 800 kg

Loading Capacity 550 kg

Queen bed (converts into table) 1

Single beds - Front bed 1

Sleeps 3 Adults

3CR12 Stainless Steel Body and Chassis

Aluminium interior and doors

Micro Dotted (also known as Data Dot) as per law specs.

2 Year Guarantee (ex factory) on material and workmanship, other items as per manufacturer's guarantees

Standard Features

  • Bush Wing awning 90° x 270° 1x

  • Sides for Bush Wing (2x doors) including draft skirt 6x

  • Front bed with tent 1x

  • Solid slide-out side bed with 3 windows (gullwing) - Converts into dinette 1x

  • Inside Shower and wash basin (with mirror) 1x

  • Mattresses 1x Single & 1x Q

  • Internal storage compartments with canvas & zips 22x

  • Additional storage compartments (3x internal: 2x external) 5x

  • Beverage cabinet in entry door 1x

  • Inside floor carpet 1x

  • Kitchen with stainless steel working table 1x

  • Crockery set in canvas holder (for six) 1x

  • Heavy duty aluminium kitchen drawer system  1x

  • 2 Plate gas cast iron burner fixed in stainless steel stand with fitted windshield  1x

  • Aluminium storage box next to fridge  1x

  • 15" Wheels, 6 stud, steel epoxy rims 3x

  • Wheel spanner, lockable spare wheel 1x

  • Spare wheel cover 1x

  • Stabilizers/Jacks/High lift jacks 2x

  • Heavy duty jockey wheel 1x

  • Jockey wheel out of the way bracket 1x

  • Solar Panel 200W with Victron MPPT 75/15A Smart Solar and aluminium roof rack 1x

  • 105 Ah Lithium battery with cover box 1x

  • Victron Intelligent Charging system, monitor and Bush Lapa power panel 1x

  • Anderson plug on A-frame for charging from ext. solar with regulator or to supply power to 12V accessories 1x

  • Roof LED light 2x

  • DUAL Touch LED lights outside (1x entrance door, 1x kitchen, 1x shower door, 1x rear) 4x

  • LED Lights (4x kitchen,1x front bed, 1x side bed, 1x entrance door, 1x  geyser door) 8x

  • Hella points 12V output (1x front RH corner, 1x rear LH corner) 2x

  • USB plugs 3x

  • Anderson Fridge points 12V 50A  1x

  • 220V Inlet caravan plug  1x

  • 220V 3 point plug (3x outside kitchen, 1x inside on DB board) 4x

  • 220V 2 point plug (1x inside on DB board) 1x

  • 220V Caravan extension lead for mains 10 m 1x

  • Aluminium checkered nosebox with wood racks on top 1x

  • Gasbottle bracket in nosebox 2x

  • Jerry can holder in nosebox 1x

  • Jerry cans 2x

  • Mudflap stone protector for chassis 1x

  • Mudflaps for wheel arch 2x

  • Fire extinguisher  1x

  • Mirror at basin. 1x

  • Wash basin inside with mixer tap 1x

  • Wash basin with dryrack on rear in aluminium frame (removable) 1x

  • Hot and cold water taps on rear for wash basin 1x each

  • 150 Litre stainless steel water tank under chassis with automatic pump, filler cap, tap and drain plug 1x

  • Water meter 1x

  • Hansen GE3 Geyser - Gas/Electrical - 14L 1x

  • Transport included to Bush Lapa certified dealers (7 working days extra from factory completion date) 1x

optional extras

  • 100W External solar panel with regulator MPPT 75/15A Blue Solar, 10m lead & PVC bag

  • National Luna 90L incl baskets (220V/12V)

  • Snomaster 81.5L incl baskets (220V/12V)

  • Mag Wheels 16'', 17'' or 18''

  • Other axle than standard

  • Gasbottles 5 kg (empty)

  • Foldable camping table (1800x740x740) with PVC bag & table strap

  • Table strap only

  • Mosquito net in door

  • Staibilisers in front under chassis (set of 2) incl spanner

  • Spade with bracket

  • Premium lower travel blanket

  • Queen front bed conversion with canvas tent

  • Carpet lining in kitchen compartments (5x compartments - sides only)

  • Carpet lining in fridge slide drawers (2x drawers - sides only)

  • Carpet lining in clothing compartments (8x compartments - sides, top and bottom)

  • Aircon - Split Unit (specs and price on request)

  • DC-DC charger to charge from vehicle POR

  • Victron Multiplus Inverter. Max 3kVA    (POR)

  • 2nd Lithium, Freedom Won, 100Ah      (POR)

  • EVA insulation    (POR)

  • Ewiks Movers (specs and price on request)
