RATEL 6

experience His beauty

SPECIFICATIONS

  • Dry Weight - full house 1140 kg

  • Total Length (Spare wheel incl) 5120 mm

  • Total Height to roof top 2150 mm

  • Total Height to top of Bush Wing (depending on tyre size) 2250 mm

  • Head room inside 1980 mm

  • Total Width 1970 mm

  • Ground Clearance (Axle) 350 mm

  • Departure angle 22°

  • Solid beam axle with leaf springs and shock absorbers2500 kg

  • GVM 1800 kg

  • Loading capacity660 kg

  • Double beds 3

  • Sleeps6 Adults

  • 3CR12 Stainless Steel Body and Chassis

  • Aluminium interior and doors

  • Micro Dotted (also known as Data Dot) as per law specs.

  • 1 Year Guarantee (ex factory) on material and workmanship, other items as per manufacturer's guarantees

OPTIONAL EXTRAS

  • Solar Panel 140W - 160W with MPPT 75/15A and aluminium roof rack

  • 100W External solar panel with regulator, 10m lead & PVC bag

  • National Luna 90L incl baskets (220V/12V)

  • Snomaster 81.5L incl baskets (220V/12V)

  • Mag Wheels 16'', 17'' or 18''

  • Other axle than standard

  • Gasbottles (empty)

  • Foldable camping table (1800x740x740) with PVC bag & table strap

  • Table strap only

  • PVC Stoneprotector

  • Mirror in shower door

  • Alko levellers in front under chassis (set of 2) incl spanner

  • Spade with bracket

  • Caravan Cover (Green/White)

  • Top travel blanket

  • Lower travel blanket



​

STANDARD FEATURES

  • Bush Wing awning 180° x 180° 1 x

  • Sides for Bush Wing (2x doors) incl draft skirt 6 x

  • 15" Wheels, 6 stud, steel epoxy rims 3 x

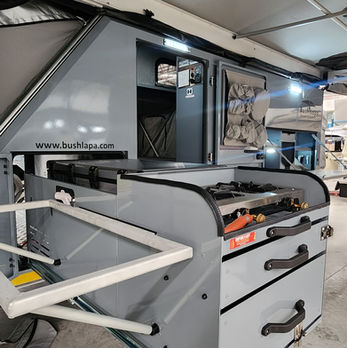

  • Kitchen with stainless steel working table 1 x

  • Stabilizers/Jacks/High lift jacks 2 x

  • Wheel spanner, lockable spare wheel 1 x

  • Cupboards for clothes with canvassing & zips 15 x

  • Mattresses with memory foam top layer 1 x Q + 2 x D

  • All beds with reflective flysheets 3 x

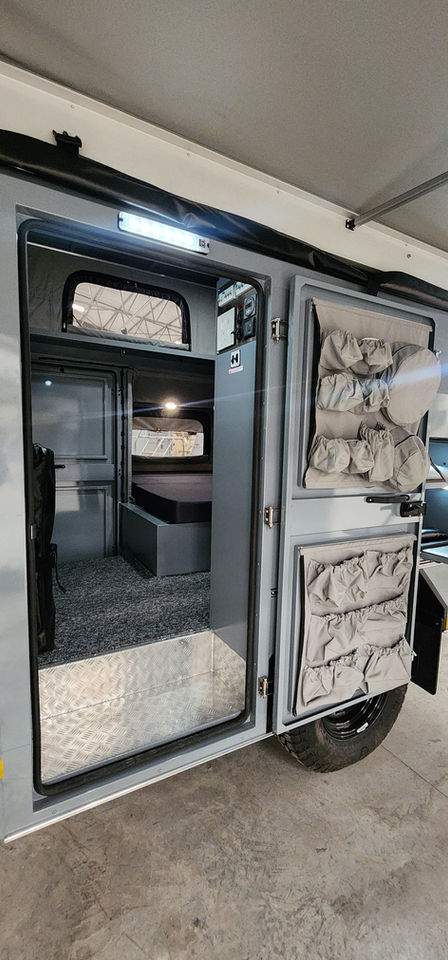

  • Dual entry doors 2 x

  • Shower cubicle 1 x

  • Inside floor carpet 1 x

  • Heavy duty jockey wheel 1 x

  • Jockey wheel out of the way bracket 1 x

  • Aluminium checkered noseboxes 2 x

  • Jerry can holder between noseboxes 1 x

  • Jerry cans 2 x

  • Aluminium woodracks on top of noseboxes 2 x

  • Deep cycle batteries with cover boxes 2 x

  • Roof LED light  1 x

  • LED Lights (4x kitchen, 1each: bed tent, entrance door,  geyser door) 9 x

  • Outside DUAL touch LED lights 3 x

  • Hella points 12V output 3 x

  • Anderson Fridge points 12V 50A  1 x

  • 220V Inlet caravan plug  1 x

  • 220V plug (3 point) outside at kitchen 3 x

  • 220V plug (2 point) inside (built in breaker) 1 x

  • 220V plug (3 point) inside (built in breaker) 1 x

  • Intelligent Charging system, monitor and Bush Lapa power panel with USB plugs 1 x

  • Charging system from vehicle (Anderson plug on A-frame) (Subject to vehicle) 1 x

  • 220V Caravan extension lead for mains 10m 1 x

  • Mudflap stone protectors for chassis 1 x

  • Mudflaps 2 x

  • Crockery set in canvas holder (for six) 1 x

  • Fire extinguisher  1 x

  • Wash basin with dryrack on rear in aluminium frame (removable) 1 x

  • Heavy duty aluminium kitchen drawer system  1 x

  • 2 burner gas stove fixed in stainless steel stand 1 x

  • Direct gas connection to gas burner with regulator 1 x

  • Gasbottle bracket in nosebox 2 x

  • 135 Litre stainless steel water tank under side bed with automatic pump, filler cap, tap and drain plug 1 x

  • Water meter 1 x

  • Hansen GE3 Geyser - Gas/Electrical - 14L 1 x

  • Hot and cold water taps on rear 1 x each

  • Hot and cold water mixer at fridge drawer for wash basin & cooking  1 x

  • Transport included to Bush Lapa certified dealers (7 working days extra from factory completion date) 1 x

PLEASE SELECT YOUR COLOUR & CANVAS COMBINATION

  • Bush Lapa Khaki caravan with Bush Lapa Khaki canvas

  • Bush Lapa Grey caravan with Bush Lapa Grey canvas
