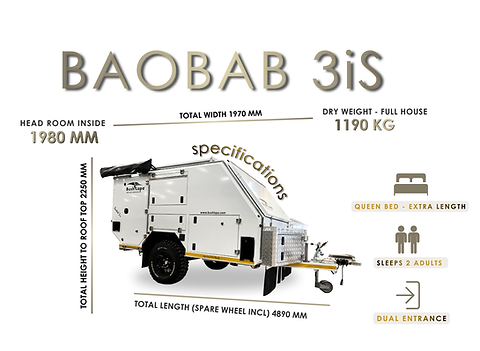

BAOBAB 3i & 3IS

SPECS

Dry Weight - as per standard included features 1190 kg

Total Length (Spare wheel included) 4890 mm

Total Height to roof top 2150 mm

Total Height to top of Bush Wing (depending on tyre size) 2250 mm

Head room inside (Pop up roof)1980 mm

Total Width 1970 mm

Ground Clearance (Axle) 350 mm

Departure angle 27°

Solid beam axle with leaf springs and shock absorbers 2500 kg

GVM 1800 kg

Loading Capacity 610 kg

Queen bed - Inside bed 1

Sleeps 2 Adults

3CR12 Stainless Steel Body and Chassis

Aluminium interior and doors

Micro Dotted (also known as Data Dot) as per law specs.

2 Year Guarantee (ex factory) on material and workmanship, other items as per manufacturer's guarantees

• Bush Wing awning 90° x 270° 1x

• Sides for Bush Wing (2x doors) includes draft skirt 6x

• Mattress 1x Q

• Internal storage compartments with canvas & zips 18x

• Storage accessible internally and externally with canvas & zips 1x

• Internal drawers 3x

• External storage compartments 5x

• Storage for porta potty 1x

• Cupboard for microwave 1x

• Inside floor carpet 1x

• Aluminium bolt-on step at entrance door (removable) 1x

• Kitchen with stainless steel working table 1x

• Crockery set in canvas holder (for six) 1x

• Heavy duty aluminium kitchen drawer system  1x

• 2 Plate gas cast iron burner fixed in stainless steel stand with fitted windshield 1x

• Aluminium storage box next to fridge 1 x

• 15" Wheels, 6 stud, steel epoxy rims 3x

• Wheel spanner, lockable spare wheel 1x

• Spare wheel cover 1x

• Stabilizers/Jacks/High lift jacks 2x

• Heavy duty jockey wheel 1x

• Jockey wheel out of the way bracket 1x

• Solar Panel 340W with Victron MPPT 100/30A Smart Solar and aluminium roof rack 1x

• 105 Ah Deep cycle batteries with cover boxes 2x

• Victron Intelligent Charging system, battery monitor and Bush Lapa power panel 1x

• Anderson plug on A-frame for charging system from vehicle (Subject to vehicle) 1x

• Roof LED light 1x

• Dual Touch LED lights outside (1x outside kitchen, 1 x back cabinet, 1x RH side storage behind DB) 2x

• LED Lights (3x kitchen, 1x bed, 1x geyser door, 1x entrance door, 1x above mirror) 6x

• USB plugs  3x

• Hella points 12V output (1x front RH corner, 1x kitchen) 2x

• Anderson plug for Fridge 12V|50A  1x

• 220V Inlet caravan plug  1x

• 220V 3 point plug (1x inside on DB board, 1x inside kitchen,3x outside kitchen) 3x

• 220V 2 point plug (1x inside on DB board, 2x inside kitchen) 3x

• 220V Caravan extension lead for mains 10 m 1x

• Aluminium checkered nosebox with wood racks on top 1x

• Gas bottle bracket in nose box 2x

• Jerry can holder in nosebox 2x

• Jerry cans 2x

• Mudflap stone protector for chassis 1X

• Mudflaps for wheel arch 2x

• Fire extinguisher  1x

• Mirror at basin. 1x

• Wash basin inside with mixer tap 1x

• Wash basin with dry rack on rear in aluminium frame (removable) 1x

• Hot and cold water taps on rear for wash basin 1x each

• 150 Litre stainless steel water tank under chassis with automatic pump, filler cap, tap and drain plug 1x

• Water meter 1x

• Hansen GE3 Geyser - Gas/Electrical - 14L 1x

• Transport included to Bush Lapa certified dealers (7 working days extra from factory completion date) 1x
